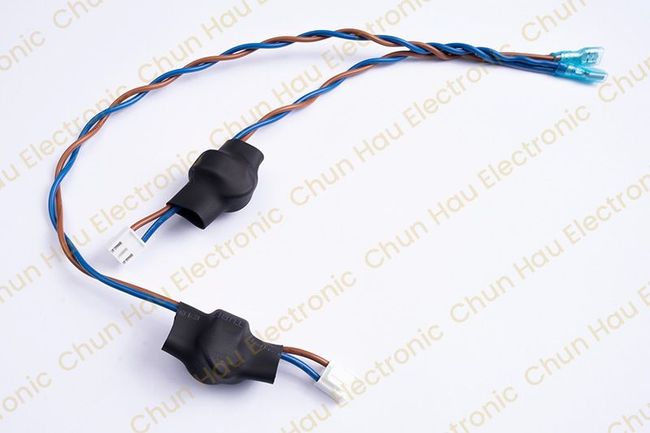

Connector VHR-3N White
Features :
- Connector Type: Receptacle housing for female socket contacts
- Number of Positions: 3
- Pitch: 3.96 mm (0.156")
- Mounting Style: Free-hanging (in-line cable mount)
- Fastening Type: Latch lock for secure mating
- Contact Termination: Crimp
- Insulation Material: Polyamide (PA6), UL94V-0 rated
- Color: Natural (white)
- Rated Voltage: Up to 250 V AC/DC
- Rated Current: Up to 10 A (with AWG #16 wire)
- Operating Temperature: -25°C to +85°C
- Insulation Resistance: >1000 MΩ
- Withstanding Voltage: 1500 VAC for 1 minute
Wire :
UL 1569 #12 wire is a standard internal wiring cable with these simple features:
- Size: It's a 12 AWG (American Wire Gauge) wire, which is a common size for many electrical connections.
- Material: Made of tinned copper (for good conductivity and corrosion resistance) with PVC (plastic) insulation.
- Temperature: Can handle temperatures up to 105∘C
- Voltage: Rated for 300V.
- Safety: It's flame-retardant (meaning it won't easily spread fire).
- Use: Mostly used for internal wiring inside electronic devices, appliances, and control panels.
Ferrite core :
Ferrite core T22.5x12.7x13.8 is simply a donut-shaped magnetic ring (called a "toroid") with specific measurements:
- T (Toroid): It's a ring shape.
- 22.5: It's 22.5 millimeters (about 0.9 inches) across the outside.
- 12.7: The hole in the middle is 12.7 millimeters (about 0.5 inches) wide.
- 13.8: It's 13.8 millimeters (about 0.54 inches) thick.
