Features :

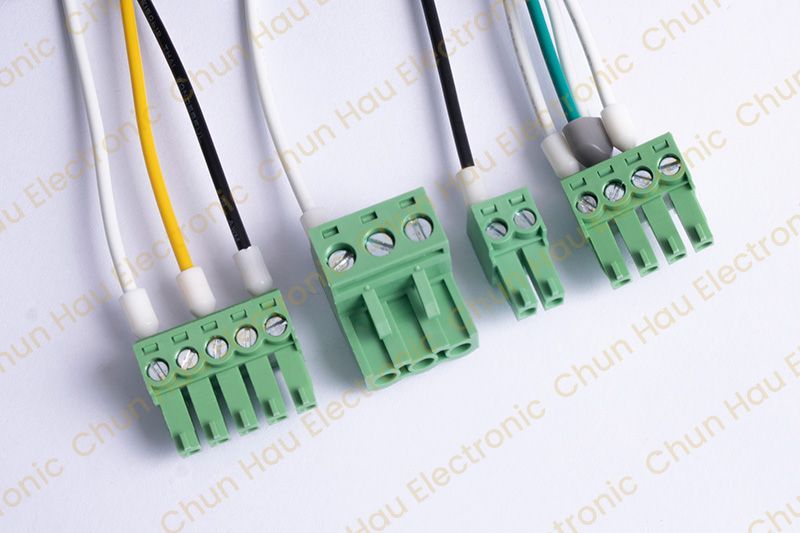

• Type: Pluggable terminal block (female socket)
• Positions: 5
• Pitch: 3.50 mm
• Mounting Style: Vertical cable entry
• Termination: Screw with wire guard and leaf spring
• Wire Size: 0.129 to 1.31 mm² (AWG 26–16)
• Rated Voltage: 300 V AC
• Rated Current: 10.5 A
• Color: Green
• Housing: PA66 (Polyamide), UL94 V-0 flame-retardant
• Contact Material: Phosphor bronze, tin over nickel plating
• Operating Temp: -40°C to +105°C
• Screw Size: M2 (zinc-plated steel)
